Intel HD3000 HD4000 HD4400 HD4600 HD5000 НD5500 HD5600 HD520 HD530 Mac OSX 驱动
显卡驱动, Intel
Intel HD3000 HD4000 HD4400 HD4600 HD5000 НD5500 HD5600 HD520 HD530 显卡驱动方法（Clover)

HD3000 显卡 Clover

机型设置：MacBookPro8,2 、MacBookPro8,3 、 Macmini5,1 这三种机型支持
Clover设置如下：

ACPI - DSDT - Fixes - AddIMEI_80000=Yes

Devices - FakeID - IMEI="0x1C3A8086"

Graphics - Inject - Intel=false

如有DSDT，可添加DSDT代码
  1. Method (_DSM, 4, NotSerialized)
  2.                 {
  3.                     Store (Package (0x08)
  4.                         {
  5.                             "device-id",
  6.                             Buffer (0x04)
  7.                             {
  8.                                 0x26, 0x01, 0x00, 0x00
  9.                             },

  11.                             "AAPL,snb-platform-id",
  12.                             Buffer (0x04)
  13.                             {
  14.                                 0x10, 0x00, 0x03, 0x00
  15.                             },

  17.                             "model",
  18.                             Buffer (0x18)
  19.                             {
  20.                                 "Intel HD Graphics 3000"
  21.                             },

  23.                             "hda-gfx",
  24.                             Buffer (0x0A)
  25.                             {
  26.                                 "onboard-2"
  27.                             }
  28.                         }, Local0)
  29.                     DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
  30.                     Return (Local0)
  31.                 }
复制代码
  1. Method (_DSM, 4, NotSerialized)
  2. {
  3. Store (Package (0x1C)
  4. {
  5. "AAPL,gray-page",
  6. Buffer (0x04)
  7. {
  8. 0x01, 0x00, 0x00, 0x00
  9. },
  10. "AAPL,gray-value",
  11. Buffer (0x04)
  12. {
  13. 0xC3, 0x8C, 0x64, 0x00
  14. },
  15. "AAPL,iokit-ndrv",
  16. Buffer (0x08)
  17. {
  18. /* 0000 */    0xA0, 0x57, 0xA9, 0x80, 0x7F, 0xFF, 0xFF, 0xFF
  19. },
  20. "subsystem-id",
  21. Buffer (0x04)
  22. {
  23. 0x4C, 0x05, 0x00, 0x00
  24. },
  25. "subsystem-vendor-id",
  26. Buffer (0x04)
  27. {
  28. 0x25, 0x10, 0x00, 0x00
  29. },
  30. "name",
  31. Buffer (0x0F)
  32. {
  33. "display"
  34. },
  35. "connector-type",
  36. Buffer (0x04)
  37. {
  38. 0x00, 0x08, 0x00, 0x00
  39. },
  40. "VRAM,totalsize",
  41. Buffer (0x04)
  42. {
  43. 0x00, 0x00, 0x00, 0x18
  44. },
  45. "device-id",
  46. Buffer (0x04)
  47. {
  48. 0x16, 0x01, 0x00, 0x00    //
  49. },
  50. "vendor-id",
  51. Buffer (0x04)
  52. {
  53. 0x86, 0x80, 0x00, 0x00
  54. },
  55. "model",
  56. Buffer (0x17)
  57. {
  58. "Intel HD Graphics 3000"
  59. },
  60. "rom-revision",
  61. Buffer (0x24)
  62. {
  63. "Intel HD Graphics 3000 384MB OpenGL"
  64. },
  65. "hda-gfx",
  66. Buffer (0x0A)
  67. {
  68. "onboard-1"
  69. },
  70. "reg",
  71. Buffer (0x50)
  72. {
  73. /* 0000 */    0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  74. /* 0008 */    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  75. /* 0010 */    0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x00, 0x02,
  76. /* 0018 */    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  77. /* 0020 */    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x40, 0x00,
  78. /* 0028 */    0x18, 0x10, 0x00, 0x42, 0x00, 0x00, 0x00, 0x00,
  79. /* 0030 */    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  80. /* 0038 */    0x00, 0x00, 0x00, 0x10, 0x20, 0x10, 0x00, 0x01,
  81. /* 0040 */    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  82. /* 0048 */    0x00, 0x00, 0x00, 0x00, 0x40, 0x00, 0x00, 0x00
  83. }
  84. }, Local0)
  85. DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
  86. Return (Local0)
  87. }
复制代码
HD4000 显卡驱动

Clover下要开启显卡侦测，代码如下
  1. <key>Graphics</key>
  2.     <dict>
  3.         <key>Inject</key>
  4.         <dict>
  5.            <key>Intel</key>
  6.            <true/>
  7.         </dict>
  8.         <key>ig-platform-id</key>
  9.         <string>0x01660003</string>
  10.     </dict>
复制代码
0x01660003 - 最适合的笔记本电脑。
如果不能正常使用，在需ID改为0x0166000A HDMI或0x0166000B这个最好在BIOS把32Mb显存

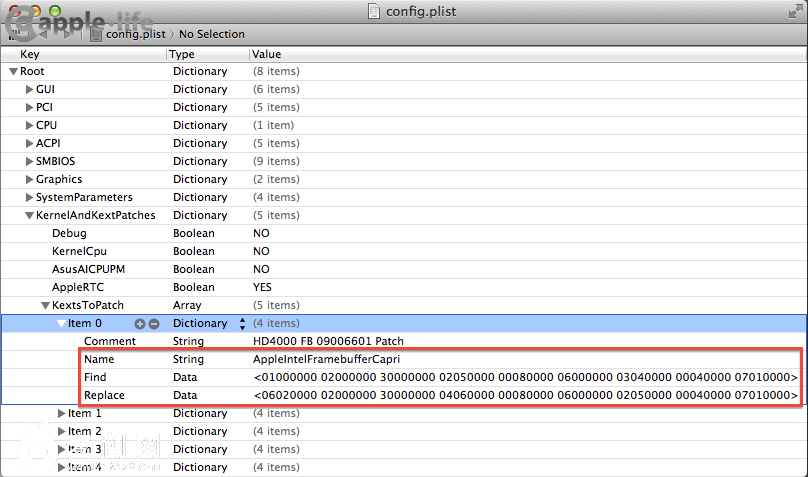

如果是台式机的话 显卡接口有问题 不能正常识别需打补丁
06 02 00 00 02 00 00 00 30 00 00 00 - VGA
04 06 00 00 00 08 00 00 06 00 00 00 - HDMI
02 05 00 00 00 04 00 00 07 01 00 00 - DVI




HD4600 HD4400 HD5000 Haswell 显卡驱动
Clover参数：开启intel显卡侦测，设置ID
  1. <key>Graphics</key>
  2. <dict>
  3.   <key>Inject</key>
  4.   <dict>
  5.      <key>Intel</key>
  6.      <true/>
  7.   </dict>
  8.   <key>ig-platform-id</key>
  9.   <string>0x0D220003</string>
  10. </dict>
复制代码
华硕：0x0A160000

10.9.3下ig-platform-ID 有以下几种，可以尝试
  1. ig-platform-id = 0x0c060000
  2. { 00 00 06 0C } // 64mb, 3 ports
  3. 000008000200000030000000 // LVDS
  4. 010509000400000004000000 // DVI
  5. 020409000008000082000000 // HDMI

  7. ig-platform-id = 0x0a160000
  8. { 00 00 16 0A } // 64mb, 3 ports (коннекторы аналогичны фб 0x0c060000)
  9. 000008000200000030000000 // LVDS
  10. 010509000400000004000000 // DVI
  11. 020409000008000082000000 // HDMI

  13. ig-platform-id = 0x0a260005
  14. { 05 00 26 0a } // 32mb, 3 ports
  15. 000008000200000030000000 // LVDS
  16. 010509000004000087000000 // DP
  17. 020409000004000087000000 // DP

  19. ig-platform-id = 0x0a2e0008
  20. { 08 00 2E 0A } // 64mb, 3 ports
  21. 000008000200000030000000 // LVDS
  22. 010509000004000007010000 // DP
  23. 02040A000004000007010000 // DP

  25. ig-platform-id = 0x0d260007
  26. { 07 00 26 0d } // 64mb, 4 ports
  27. 000008000200000030000000 // LVDS
  28. 01050B000004000007010000 // DP
  29. 02040B000004000007010000 // DP
  30. 030603000008000006000000 // HDMI

  32. ig-platform-id = 0x0d220003
  33. { 03 00 22 0D } // 32mb, 3 ports
  34. 010509000004000087000000 // DP
  35. 02040A000004000087000000 // DP
  36. 030608000004000011000000 // DP

  38. ig-platform-id = 0x0a2e000a
  39. { 0A 00 2E 0A } // 32mb, 3 ports
  40. 000008000200000011000000 // LVDS
  41. 010509000004000087000000 // DP
  42. 02040A000004000087000000 // DP

  44. ig-platform-id = 0x04120004
  45. { 04 00 12 04 } // 32mb, 0 ports

  47. ig-platform-id = 0x0d260009
  48. { 09 00 26 0D } // 64mb, 1 port
  49. 000008000200000030000000 // LVDS
复制代码
HD5000 显卡
  1. { 0x00,0x00,0x06,0x04 }, // 0 "AAPL,ig-platform-id" HD5000 //FB: 64MB, Pipes: 3, Ports: 3, FBMem: 3 - mobile GT1
  2. 000010000200000030000000 // LVDS
  3. 010512000400000004000000 // DP
  4. 020412000008000082000000 // HDMI
  5. { 0x00,0x00,0x06,0x0c }, // 1 "AAPL,ig-platform-id" HD5000 //FB: 64MB, Pipes: 3, Ports: 3, FBMem: 3 - SDV mobile GT1
  6. 000010000200000030000000 // LVDS
  7. 010512000400000004000000 // DP
  8. 020412000008000082000000 // HDMI
  9. { 0x00,0x00,0x16,0x04 }, // 2 "AAPL,ig-platform-id" HD5000 //FB: 64MB, Pipes: 3, Ports: 3, FBMem: 3 - mobile GT2
  10. 000010000200000030000000 // LVDS
  11. 010512000400000004000000 // DP
  12. 020412000008000082000000 // HDMI
  13. { 0x00,0x00,0x16,0x0a }, // 3 "AAPL,ig-platform-id" HD5000 //FB: 64MB, Pipes: 3, Ports: 3, FBMem: 3 - ULT mobile GT2
  14. 000010000200000030000000 // LVDS
  15. 010512000400000004000000 // DP
  16. 020412000008000082000000 // HDMI
  17. { 0x00,0x00,0x16,0x0c }, // 4 "AAPL,ig-platform-id" HD5000 //FB: 64MB, Pipes: 3, Ports: 3, FBMem: 3 - SDV mobile GT2
  18. 000010000200000030000000 // LVDS
  19. 010512000400000004000000 // DP
  20. 020412000008000082000000 // HDMI
  21. { 0x00,0x00,0x26,0x04 }, // 5 "AAPL,ig-platform-id" HD5000 //FB: 64MB, Pipes: 3, Ports: 3, FBMem: 3 - mobile GT3
  22. 000010000200000030000000 // LVDS
  23. 010512000400000004000000 // DP
  24. 020412000008000082000000 //HDMI
  25. { 0x00,0x00,0x26,0x0a }, // 6 "AAPL,ig-platform-id" HD5000 //FB: 64MB, Pipes: 3, Ports: 3, FBMem: 3 - ULT mobile GT3
  26. 000010000200000030000000 // LVDS
  27. 010512000400000004000000 // DP
  28. 020412000008000082000000 // HDMI
  29. { 0x00,0x00,0x26,0x0c }, // 7 "AAPL,ig-platform-id" HD5000 //FB: 64MB, Pipes: 3, Ports: 3, FBMem: 3 - SDV mobile GT3
  30. 000010000200000030000000 // LVDS
  31. 010512000400000004000000 // DP
  32. 020412000008000082000000 // HDMI
  33. { 0x00,0x00,0x26,0x0d }, // 8 "AAPL,ig-platform-id" HD5000 //FB: 64MB, Pipes: 3, Ports: 3, FBMem: 3 - CRW mobile GT3
  34. 000010000200000030000000 // LVDS
  35. 010512000400000004000000 // DP
  36. 020412000008000082000000 // HDMI
  37. { 0x02,0x00,0x16,0x04 }, // 9 "AAPL,ig-platform-id" HD5000 //FB: 64MB, Pipes: 1, Ports: 1, FBMem: 1 - mobile GT2
  38. 000010000200000030000000
  39. { 0x03,0x00,0x22,0x0d }, // 10 "AAPL,ig-platform-id" HD5000 //FB: 32MB, Pipes: 3, Ports: 3, FBMem: 3 - CRW Desktop GT3
  40. 010512000004000087000000 // DP
  41. 020414000004000087000000 // DP
  42. 030610000004000011000000 // DP
  43. { 0x04,0x00,0x12,0x04 }, // 10 "AAPL,ig-platform-id" HD5000 //FB: 0MB, Pipes: 0, Ports: 0, FBMem: 0 - CRW Desktop GT3
  44. { 0x05,0x00,0x26,0x0a }, // 11 "AAPL,ig-platform-id" HD5000 //FB: 32MB, Pipes: 3, Ports: 3, FBMem: 3 - ULT mobile GT3
  45. 000010000200000030000000 // LVDS
  46. 010512000004000087000000 // DP
  47. 020412000004000087000000 // DP
  48. { 0x06,0x00,0x26,0x0a }, // 12 "AAPL,ig-platform-id" HD5000 //FB: 32MB, Pipes: 3, Ports: 3, FBMem: 3 - ULT mobile GT3
  49. 000010000200000030000000 // LVDS
  50. 010512000004000087000000 // DP
  51. 020412000004000087000000 // DP
  52. { 0x07,0x00,0x26,0x0d }, // 13 "AAPL,ig-platform-id" HD5000 //FB: 64MB, Pipes: 3, Ports: 4, FBMem: 3 - CRW mobile GT3
  53. 000010000200000030000000 // LVDS
  54. 010512000004000007010000 // DP
  55. 020414000004000007010000 // DP
  56. 030612000008000006000000 // HDMI
  57. { 0x08,0x00,0x26,0x0a }, // 14 "AAPL,ig-platform-id" HD5000 //FB: 64MB, Pipes: 3, Ports: 3, FBMem: 3 - ULT mobile GT3
  58. 000010000200000030000000 // LVDS
  59. 010512000004000007010000 // DP
  60. 02041400000C000007010000 // ThunderBolt
  61. { 0x08,0x00,0x2e,0x0a } // 15 "AAPL,ig-platform-id" HD5000 //FB: 64MB, Pipes: 3, Ports: 3, FBMem: 3 - ULT reserved GT3
  62. 000010000200000030000000 // LVDS
  63. 010512000004000007010000 // DP
  64. 02041400000C000007010000 // ThunderBolt
复制代码
HD4400 显卡驱动 VGA
方法同上:查看ID 方法： https://github.com/RehabMan/OS-X-Fake-PCI-ID
配置的三叶草
1) DSDT : AddDTGP + FixIntelGFX;
2) FakeID Intel= 0x04128086;
3) Inject Intel = Yes; ig-platform-id = 0x0D220003;

HD5500 HD5600 Broadwell

移动视频卡英特尔HD图形5500 / 5600（Broadwell）
在论坛上，我没有找到详细的信息将是有益的
Broadwell图形的完整列表：
0x0bd1: Intel HD Graphics..............(GT1)
0x0bd2: Intel HD Graphics..............(GT2)
0x0bd3: Intel HD Graphics..............(GT3)
0x1602: Intel HD Graphics..............(HALO GT1)
0x1606: Intel HD Graphics..............(ULT GT1)
0x160a: ???
0x160b: ???
0x160d: ???
0x160e: ???.......................(ULX GT1)
0x1612: Intel HD Graphics 5600.........(HALO GT2)
0x1616: Intel HD Graphics 5500.........(ULT GT2)
0x161a: ???
0x161b: ???
0x161d: ???
0x161e: Intel HD Graphics 5300.........(ULX GT2)
0x1622: Intel Iris Pro Graphics 6200....(HALO GT3)
0x1626: Intel HD Graphics 6000.........(ULT GT3)
0x162a: Intel Iris Pro Graphics P6300...(WRKS GT3)
0x162b: Intel Iris Graphics 6100........(ULT GT3)
0x162d: Intel Iris Pro Graphics 6300P...(SRVR GT3)

列出可用的平台- ID：
  1. [ 1] : 0x16060000 – Broadwell GT1
  2. [ 2] : 0x160e0000 – Broadwell GT1
  3. [ 3] : 0x16160000 – Broadwell GT2
  4. [ 4] : 0x161e0000 – Broadwell GT2 (MacBook)
  5. [ 5] : 0x16260000 – Broadwell GT3 (MacBook Air)
  6. [ 6] : 0x162b0000 – Broadwell GT3 (MacBook Pro)
  7. [ 7] : 0x16220000 – Broadwell GT3
  8. [ 8] : 0x160e0001 – Broadwell GT1
  9. [ 9] : 0x161e0001 – Broadwell GT2 (MacBook)
  10. [10] : 0x16060002 – Broadwell GT1
  11. [11] : 0x16160002 – Broadwell GT2
  12. [12] : 0x16260002 – Broadwell GT3 (MacBook Air)
  13. [13] : 0x16220002 – Broadwell GT3
  14. [14] : 0x162b0002 – Broadwell GT3 (MacBook Pro)
  15. [15] : 0x16120003 – Broadwell GT2
  16. [16] : 0x162b0004 – Broadwell GT3 (MacBook Pro)
  17. [17] : 0x16260004 – Broadwell GT3 (MacBook Air)
  18. [18] : 0x16260005 – Broadwell GT3 (MacBook Air)
  19. [19] : 0x16260006 – Broadwell GT3 (MacBook Air)
复制代码

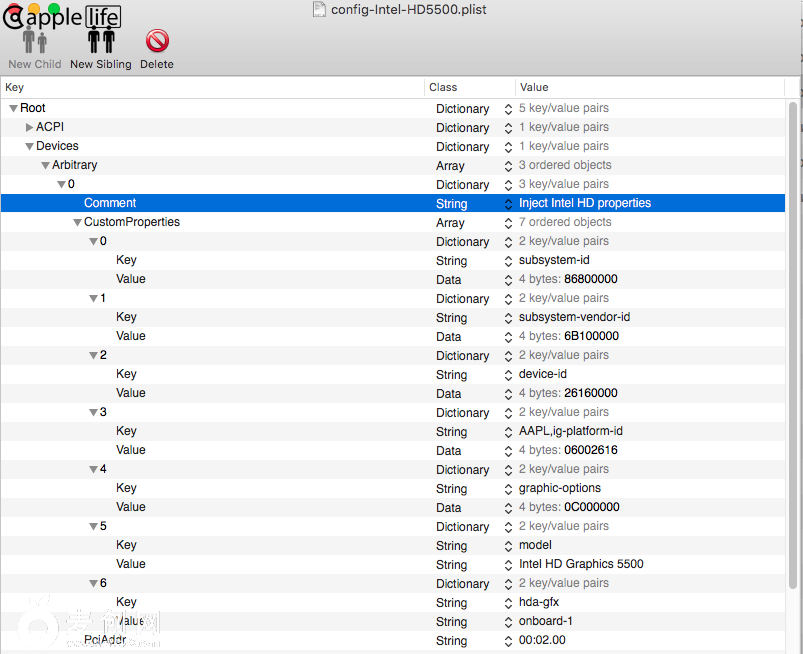

[1] Intel HD Graphics 5500 (ULT GT2) id: 0x1616[2] Intel HD Graphics 5600 (HALO GT2) id: 0x1612
平台- ID：0x16260006
（FakeID：0x1626英特尔HD图形6000）

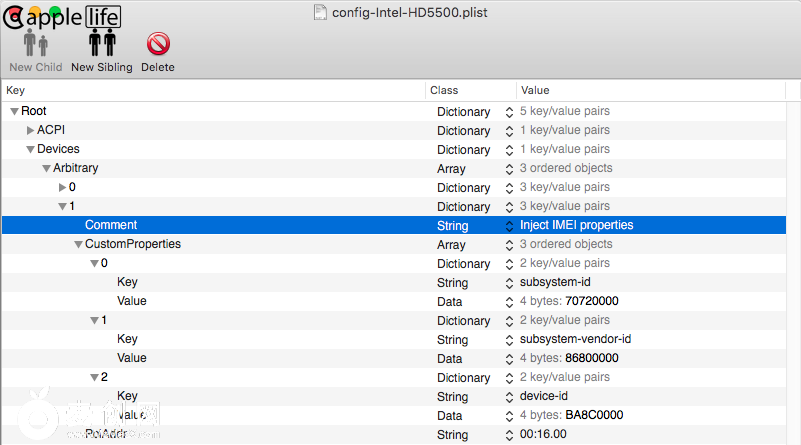

FakeID IMEI（可选的）为控制器

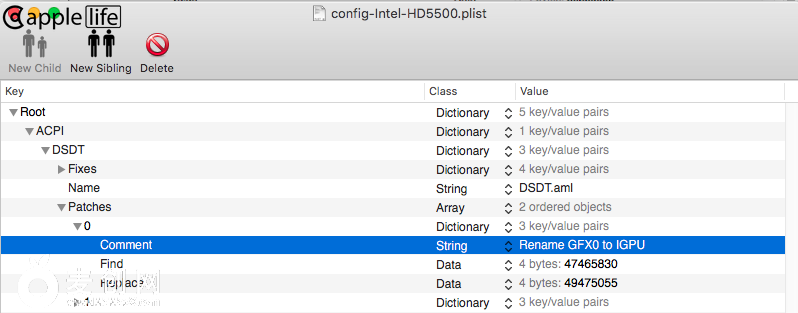

重命名GFX0 - > IGPU ACPI的显卡（AGPM）
在BIOS下安装显卡96мб（或更多的）

1) subsystem-id = 86800000 (8086 = Intel)
2) subsystem-vendor-id = 6B100000 (106B = Apple)
3) device-id = 26160000 (0x1626)
3) AAPL,ig-platform-id = 06002616 (0x16260006)
4) graphics-options = 0C000000
5) model = Intel HD Graphics 5500
или model = Intel HD Graphics 5600
6) hda-gfx = onboard-1
7) PciAddr = 00:02.00

FakeID для IMEI (Intel ME контроллер)
硬件 id:
1) BA8C0000 (0x8cba)  iMac16,2 ( HM97 id: 0x8cc3)
// AppleIntelBDWGraphicsFramebuffer
2) BA9C0000 (0x9cba)
3) 3A8C0000 (0x8c3a)
4) 3A9C0000 (0x9c3a)



BIOS不能改变的显存分配的< 96мб，那么得到的警告：“minStolenSize < = fStolenMemorySize”

1）OSX 10.10.X
Name: AppleIntelBDWGraphicsFramebufferFind: 39CF763CReplace: 39CFEB3C2) OS X 10.11.x:
Name: AppleIntelBDWGraphicsFramebufferFind: 4139C4763EReplace: 4139C4EB3E

又及：找到一种方法在相同的推荐所有参数的改变，例如通过壳的TC细胞发生改变或影响其表达，在выплывающихартифактах补丁
--------------------------------
[声音]的HDMI
在一个性质的“onboard - 1”的声音是不够的英特尔高清的HDMI
在平台上对类似的特征вешалось青藤和下面的HDEF（音频编解码器）
通过对Haswell +使用B0D3装置（地址0x00030000）
他可能得了以OS X，他需要在HDAU重命名

ig-platform-id = 0x16260006
0600 2616 0103 0303 0000 2002 0000 5001 //ig-platform-id: 0x16260006; DVMT: 34mb; FBMem: 21mb
0000 0060 d90a 0000 d90a 0000 0000 0000 //VRAM: 1536mb;
0000 0000 0000 0000 0000 0800 0200 0000 //LVDS (монитор ноутбука); Коннектор: 02000000; Порт: 0x0;
3000 0000 0105 0b00 0004 0000 0705 0000 //DP; Коннектор: 00040000; Порт: 0x5
0204 0b00 0004 0000 0705 0000 ff00 0000 //DP; Коннектор: 00040000; Порт: 0x6
0100 0000 4000 0000 0f0b 0000 0101 0500
0000 0000 0500 0000 0000 0000 0400 0000

1) layout-id = 1C000000 (0x1c = 12) HDEF

2) hda-gfx = onboard-1
3) PciAddr = 00:03.00 (0x00030000 -
https://github.com/RehabMan/OS-X-Intel-Backlight)
config-Intel-HD515-Mobile.plist.zip (2.42 KB, 下载次数: 0)
config-Intel-HD530-Desktop-1.plist.zip (2.67 KB, 下载次数: 10)
config-Intel-HD530-Desktop-2.plist.zip (2.19 KB, 下载次数: 9)
config-Intel-HD530-Mobile.plist.zip (2.36 KB, 下载次数: 4)
config-Intel-HD5500.plist.zip (1.93 KB, 下载次数: 12)
config-Intel-HD5600.plist.zip (1.93 KB, 下载次数: 2) IntelBacklight.kext.zip (15.7 KB, 下载次数: 5)
http://www.imac.vip/thread-7471-1-2.html  Intel HD3000显卡驱动 For macOS 10.15 ，Intel显卡Mac驱动

打赏楼主

取消

感谢您的支持，我会继续努力的!

扫码支持
扫码打赏，你说多少就多少

打开支付宝扫一扫，即可进行扫码打赏哦

相关帖子
回复 打赏

使用道具 举报


kinzine

发表于 17/2/15 22:18:32 |显示全部楼层
谢谢楼主分享，学习了
回复 打赏

使用道具 举报


burning

发表于 18/1/5 19:13:25 |显示全部楼层
谢谢楼主的分享终于找到了530的文件:P
回复 打赏

使用道具 举报


高级模式
B Color Image Link Quote Code Smilies
您需要登录后才可以回帖 登录 | 注册

本版积分规则

麦创网 ( 苏ICP备13053101号-1 )

@麦创网 禁止任何未经允许的修改,传播或使用。

Powered by Discuz!

©2012 @ iMac.vip. 用户言论不代表本站立场。

返回顶部
